Accelerometer Sensor
3-axis accelerometer LIS344ALH [ available ]
The MLT-LIS344ALH satellite module is a small breakout board with ST’s LIS344ALH analog voltage output 3-axis accelerometer sensor. The range is digitally adjustable to ±2g and ±6g on the available pin headers as well as self test feature and power down mode. The board dimension are 25 mm x 15 mm (1″ x 0.6″). A more detailed description can be found in the board manual below.
Pictures:

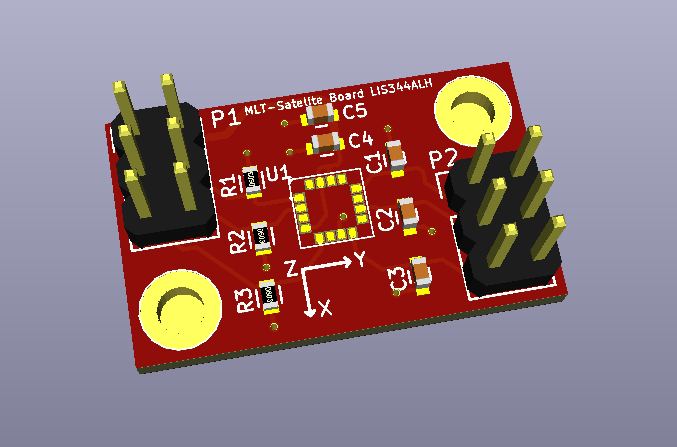

LIS344ALH

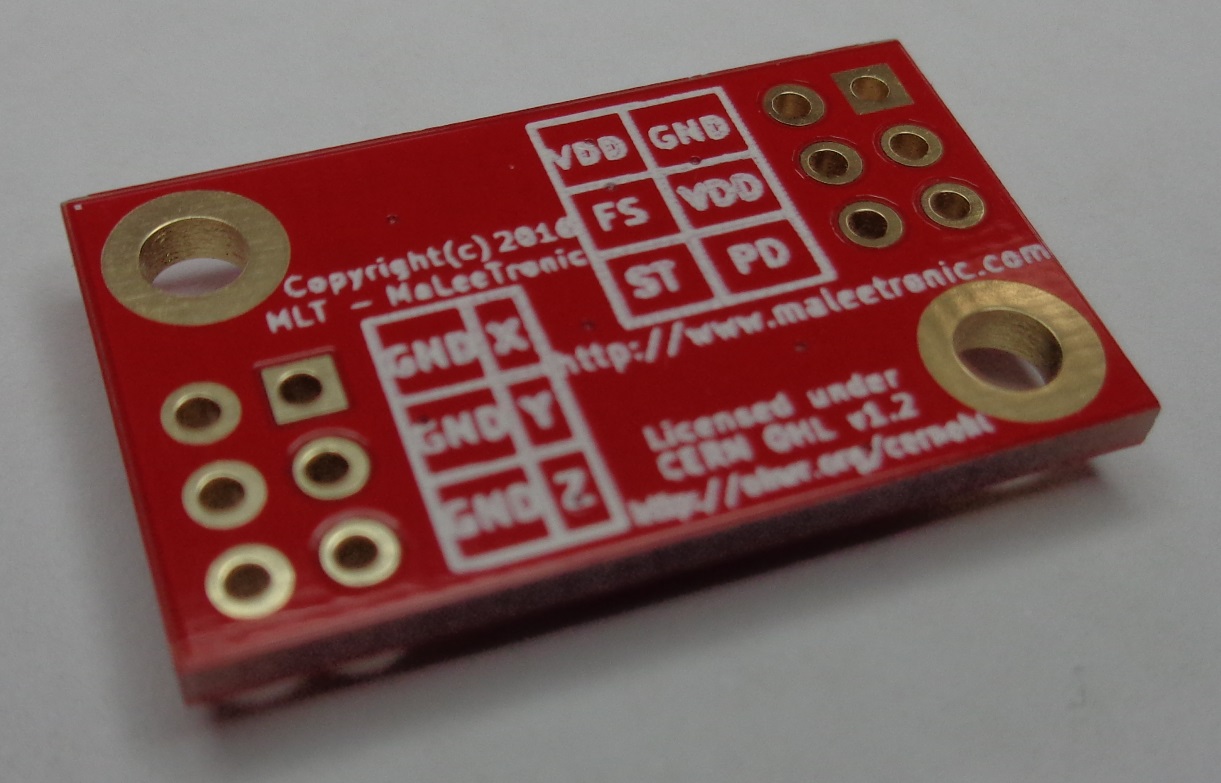

LIS344ALH

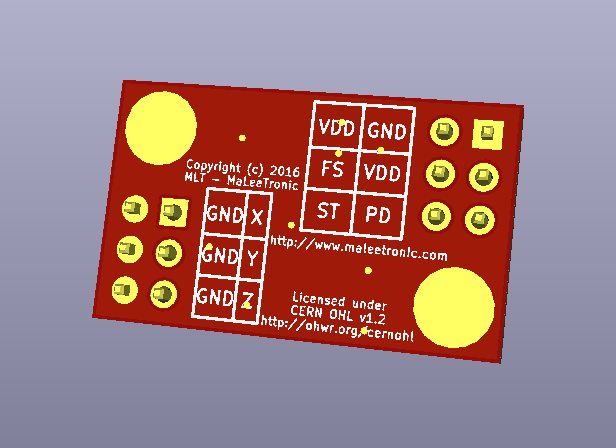

LIS344ALH

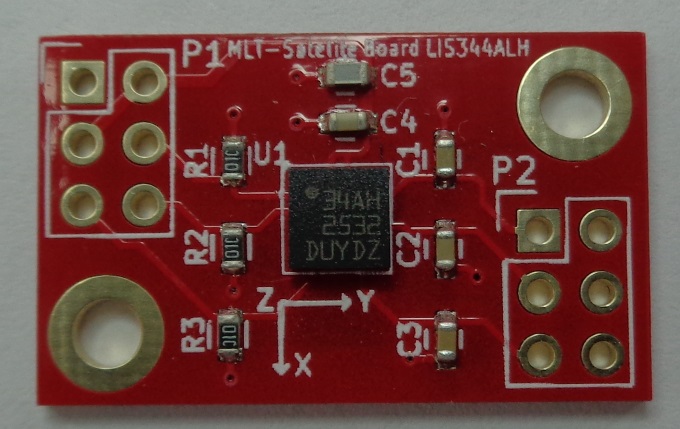

LIS344ALH

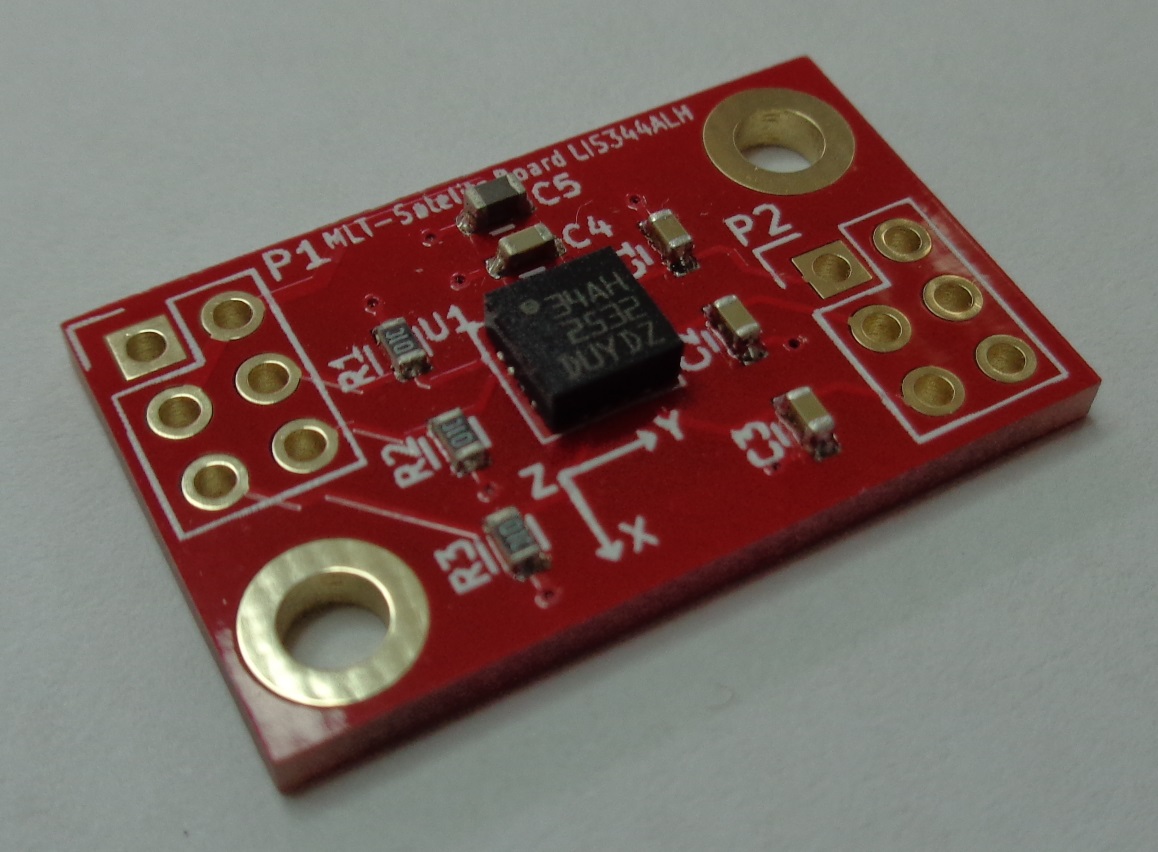

LIS344ALH
Downloads:
Click here to download the data sheet for the LIS344ALH. [212 KB]
Click here to download the board manual for the LIS344ALH module. [509 KB]
Click here to download the KiCAD PCB design files. [75 KB]
